The sintered metal filter panels may be formed into filter elements such as filter discs, filter cartridge, filter laminate, and filter tube.
Payments:This supplier also supports L/C,T/T,Western Union,MoneyGram payments.

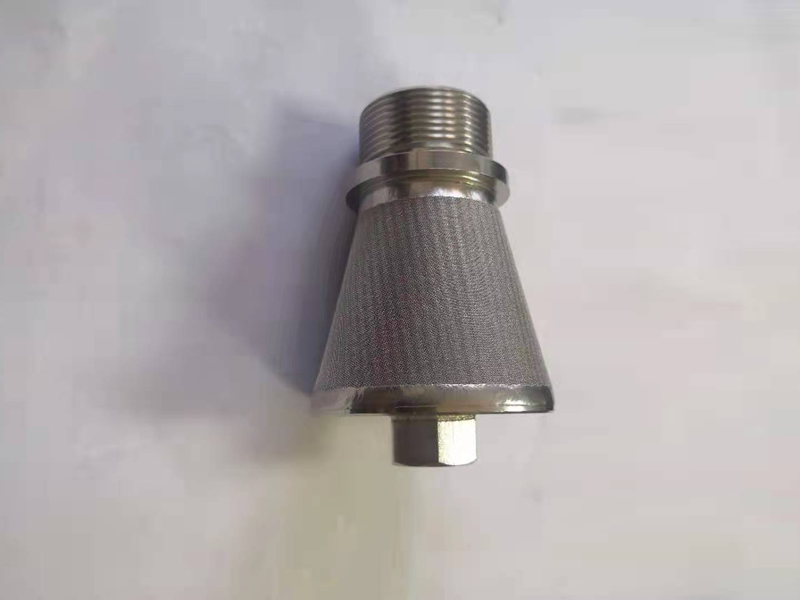

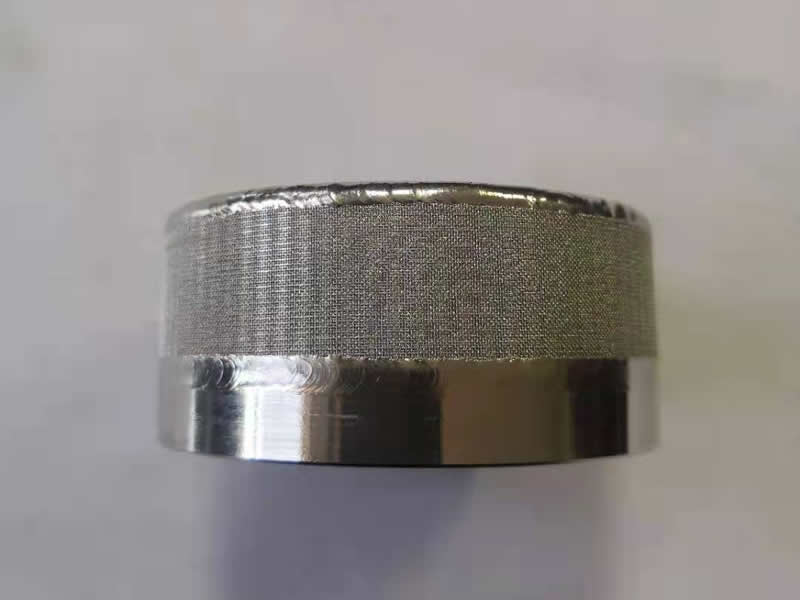

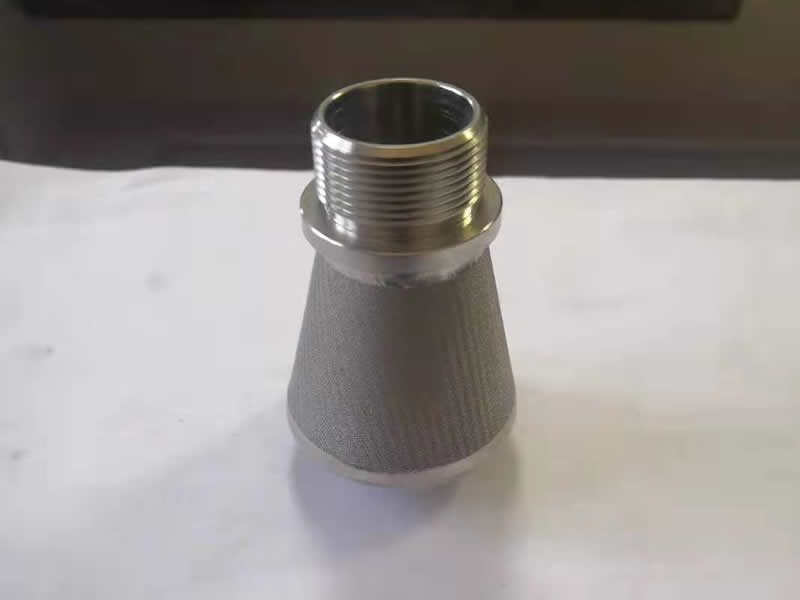

The sintered metal filter panels may be formed into filter elements such as filter discs, filter cartridge, filter laminate, and filter tube. Sintered filter elements are made by moulds through high temperature sintering process forming different shape filters such as filter baskets and cone-shape filter, cup filters, cap filters, and filter plate.

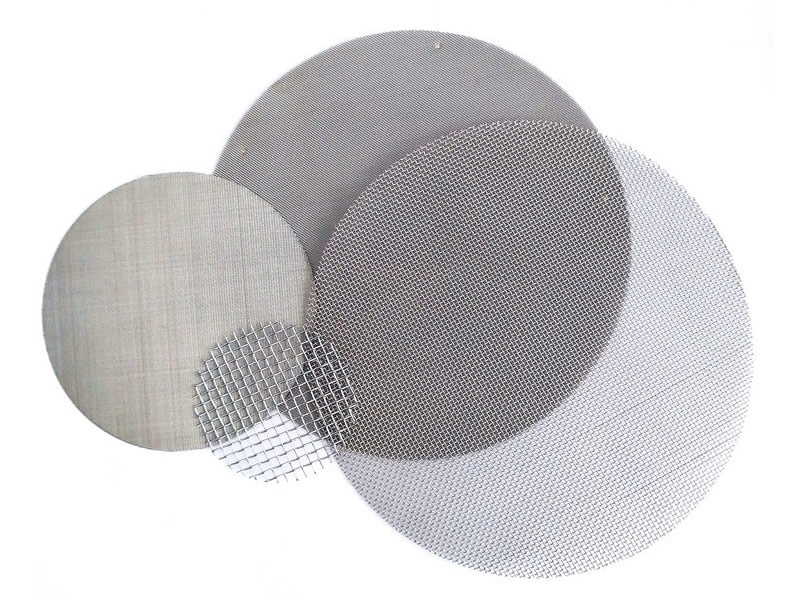

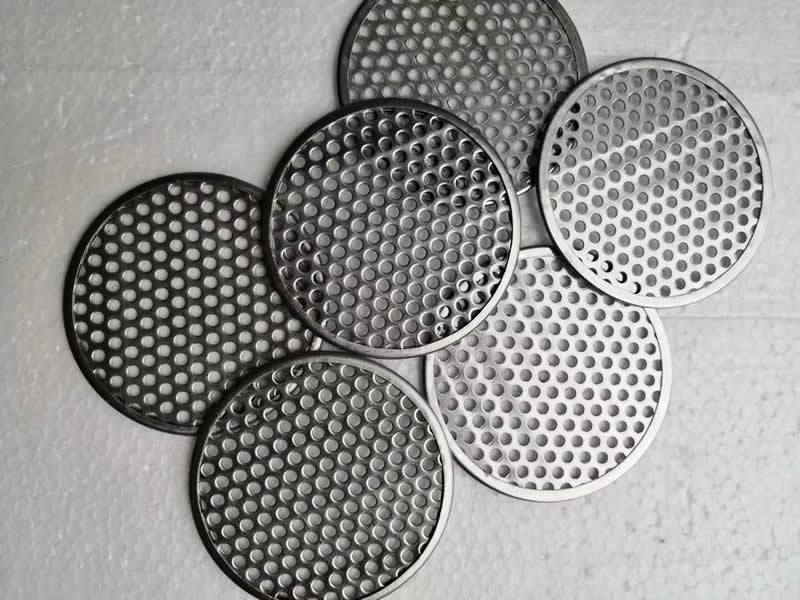

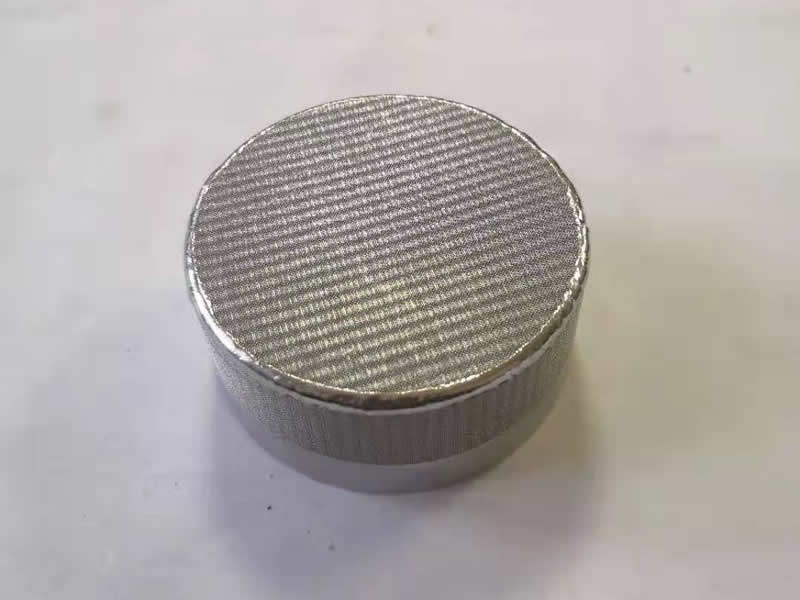

Sintered filter disc, available in round, oval, annulus shapes and in split and integral type, can work well in -200°c to 600°c for drying and filtering, filter rate 2-300 microns.
Sintered mesh laminates with the ability to maintain a steady filter rating under high pressure, are easy to clean with a variety of filter cleaning techniques and reuse. It is widely used in water treatment, liquid and gas filtration industry.

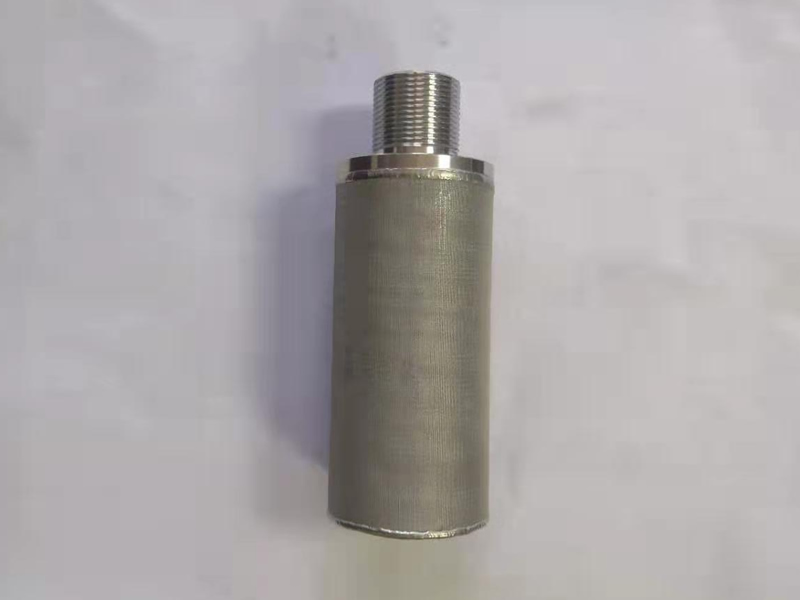

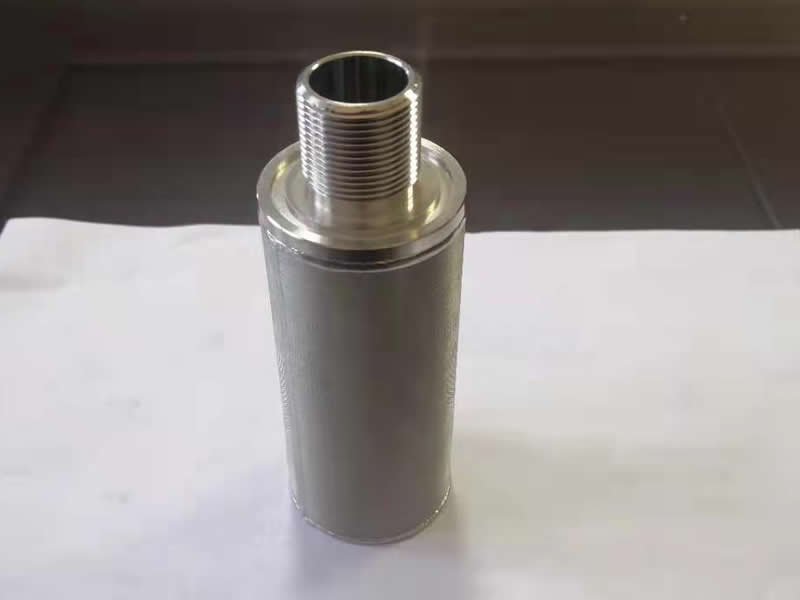

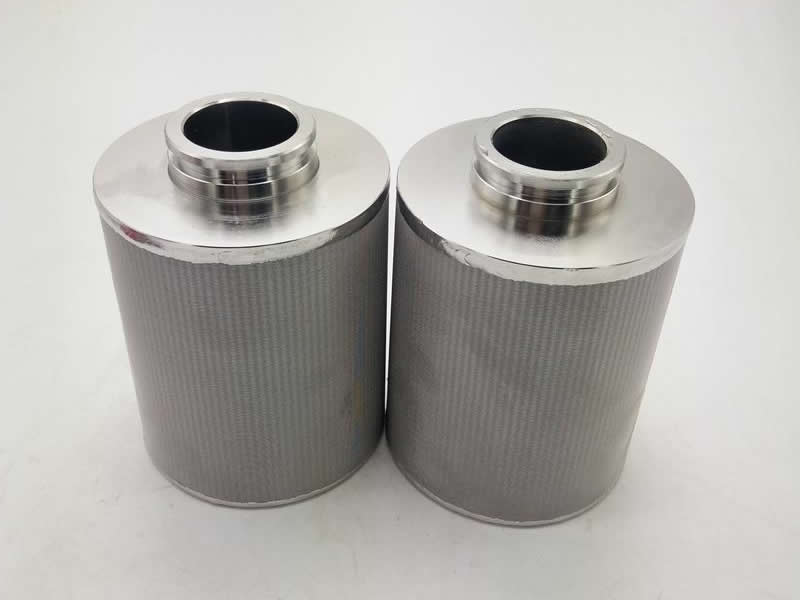

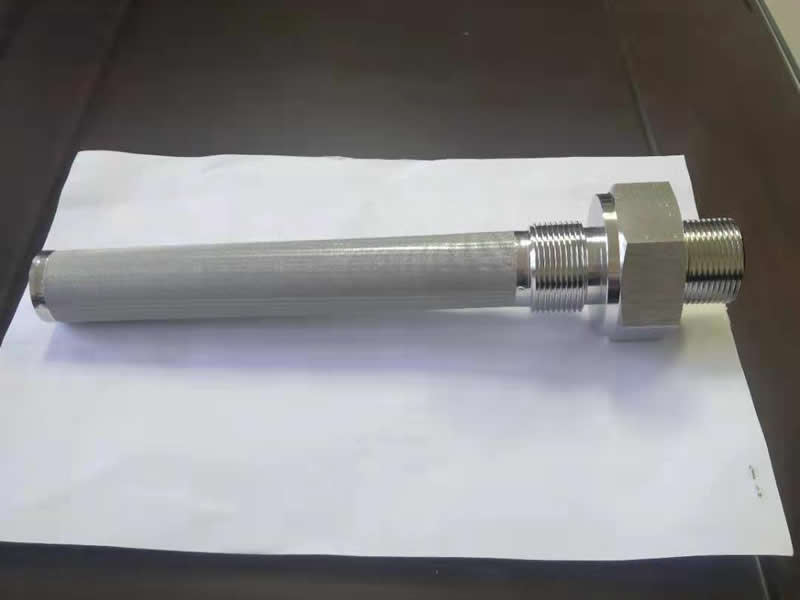

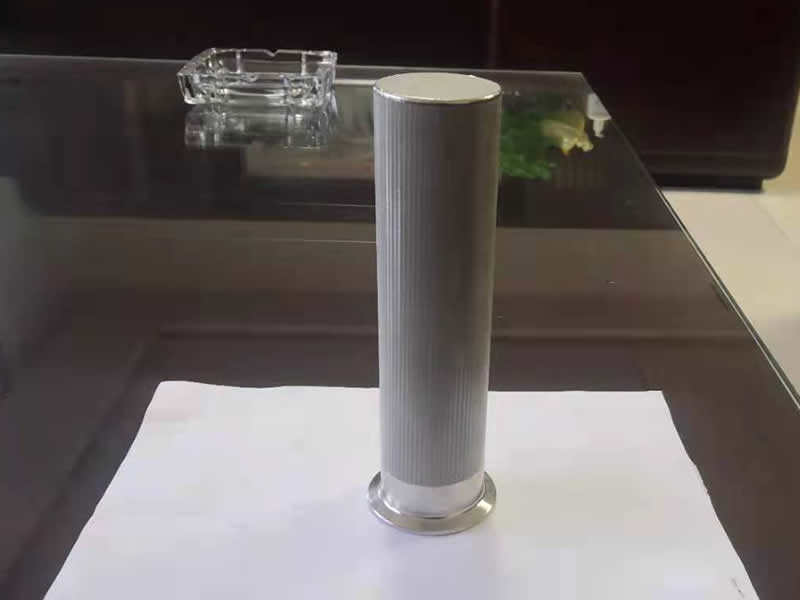

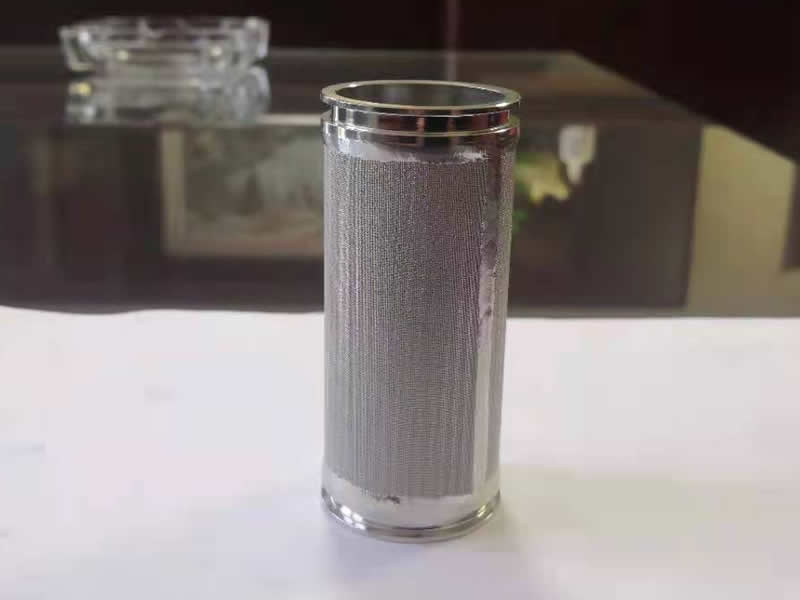

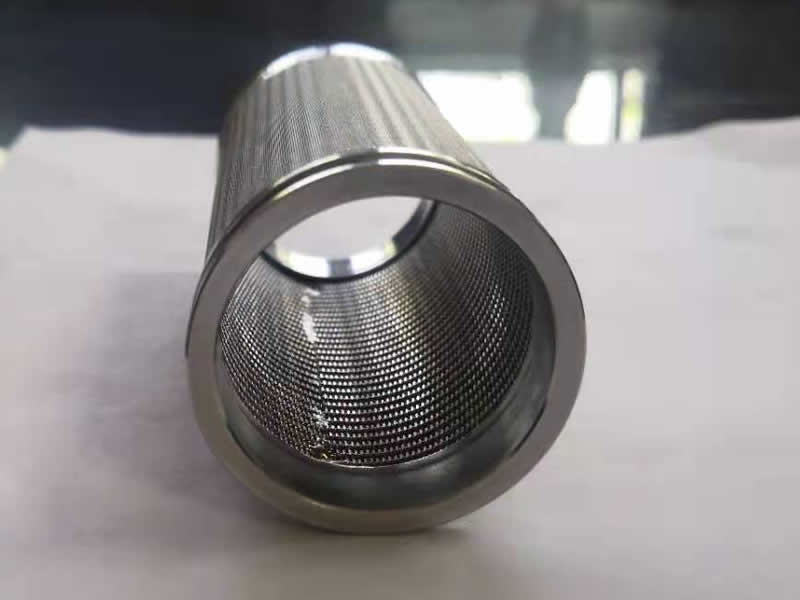

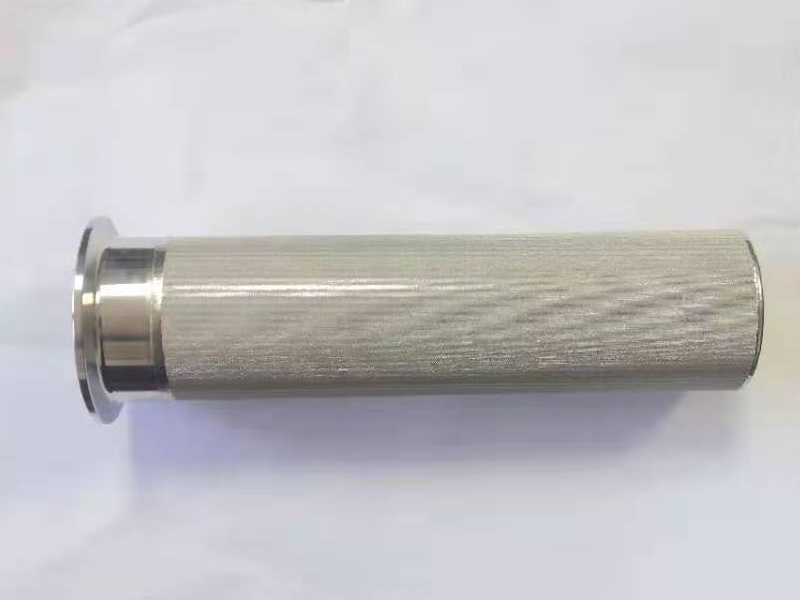

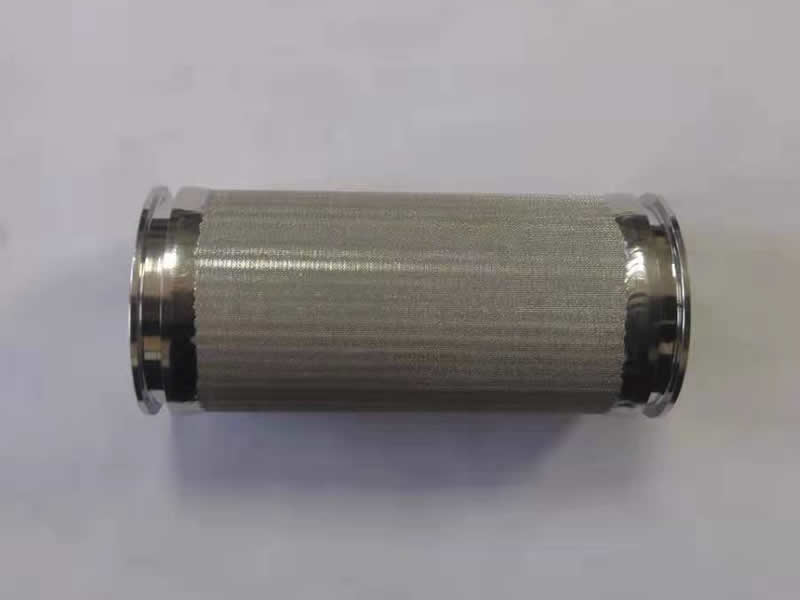

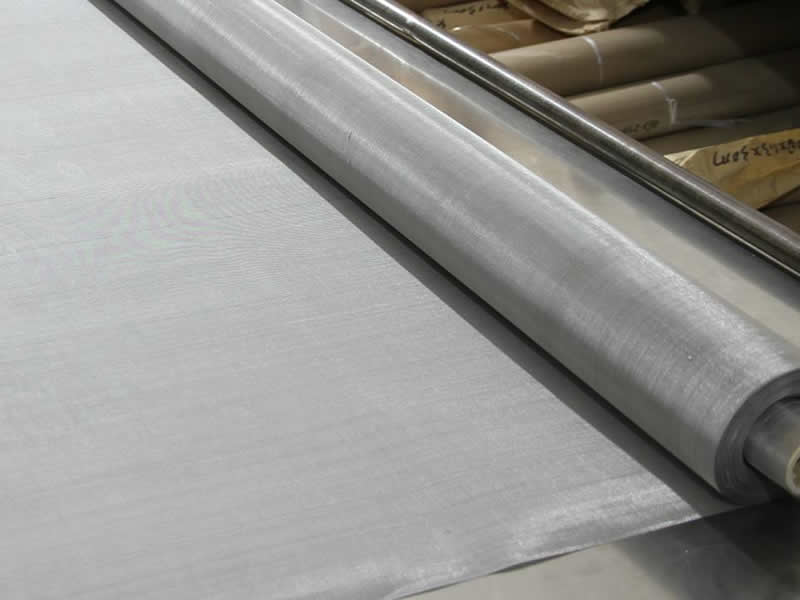

Sintered mesh filter cartridges from stainless steel wire cloth with filter rating 1-250 micron for pharmaceuticals, fluidized beds, liquid and gas filtration.
| Nominal Filter Rating (μm) | Protective Layer Mesh | Filtration Layer Mesh | Dispersion Layer Mesh | Reinforcing Layer Mesh | Reinforcing Layer Mesh | Thickness (mm) | Air Permeability (L/min/cm2) | Bubble Pressure (mm H2O) | Weight (kg/m2) | Porosity |
| 1 | 200 | 400 x 3000 | 200 | 12 x 64 | 64 X 12 | 1.7 | 1.81 | 360 - 360 | 5 Layers (8.4) 6 Layers (14.4) | Approx 40% |
| 2 | 100 | 325 x 2300 | 100 | 12 x 64 | 64 X 12 | 1.7 | 2.35 | 300-590 | ||
| 5 | 100 | 200 x 1400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 2.42 | 260-550 | ||
| 10 | 100 | 165 x 1400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 3.00 | 220-500 | ||
| 15 | 100 | 165 x 1200 | 100 | 12 x 64 | 64 X 12 | 1.7 | 3.41 | 200-480 | ||
| 20 | 100 | 165 x 800 | 100 | 12 x 64 | 64 X 12 | 1.7 | 4.50 | 170-450 | ||
| 25 | 100 | 165 x 600 | 100 | 12 x 64 | 64 X 12 | 1.7 | 6.12 | 150-410 | ||
| 30 | 100 | 400 | 100 | 12 x 64 | 64 X 12 | 1.7 | 6.86 | 120-390 | ||
| 40 | 100 | 325 | 100 | 12 x 64 | 64 X 12 | 1.7 | 7.10 | 100-350 | ||
| 50 | 100 | 250 | 100 | 12 x 64 | 64 X 12 | 1.7 | 8.41 | 90-300 | ||
| 75 | 100 | 200 | 100 | 12 x 64 | 64 X 12 | 1.7 | 8.70 | 80-250 | ||
| 100 | 100 | 150 | 100 | 12 x 64 | 64 X 12 | 1.7 | 9.10 | 70-190 | ||
| 150 | 50+100+50+30+30+100+50 | 2.0 | 25.00 | 50-150 | ||||||
| 200 | 40+80+40+20+40+80+40 | 2.0 | 26.00 | 50-150 | ||||||
